Volkswagen Golf Service & Repair Manual: Assembly overview - Lambda probe

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Mixture preparation system, electronic inj., Gas / Lambda probe / Assembly overview - Lambda probe

Note

New lambda probes are coated with an assembly paste. This paste must not get into the slots on the Lambda probe body.

In the case of a used Lambda probe grease only the thread with high-temperature paste. This paste must not get into the slots on the Lambda probe body. High-temperature paste → Electronic Parts Catalogue.

During installation, the electrical connecting cable of the Lambda probe must be attached in the same places. The wire must be prevented from touching the exhaust pipe.

Assembly overview - Lambda probe

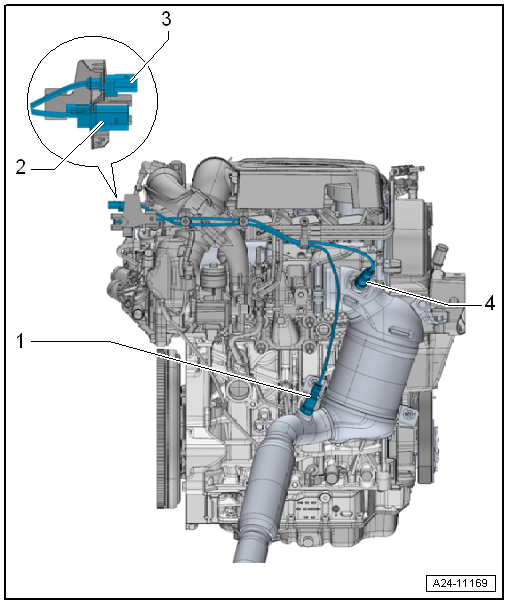

1 -	Lambda probe 1 after catalytic converter -GX7-

Consisting of

Lambda probe after catalytic converter -G130-

Lambda probe heater 1 after catalytic converter -Z29-

Removing and installing → Chapter

55 Nm

2 -	Electrical connector

For Lambda probe 1 after catalytic converter -GX7-.

3 -	Electrical connector

For Lambda probe 1 before catalytic converter -GX10-.

4 -	Lambda probe 1 before catalytic converter -GX10-

Consisting of

Lambda probe -G39-

Lambda probe heater -Z19-

Removing and installing → Chapter

55 Nm

Lambda probe

...

Removing and installing lambda probe 1 before catalytic converter -GX10-/lambda probe 1 after catalytic converter -GX7-

Lambda probe 1 before catalytic converter -GX10- consists of Lambda probe -G39- Lambda probe heater -Z19- ...
