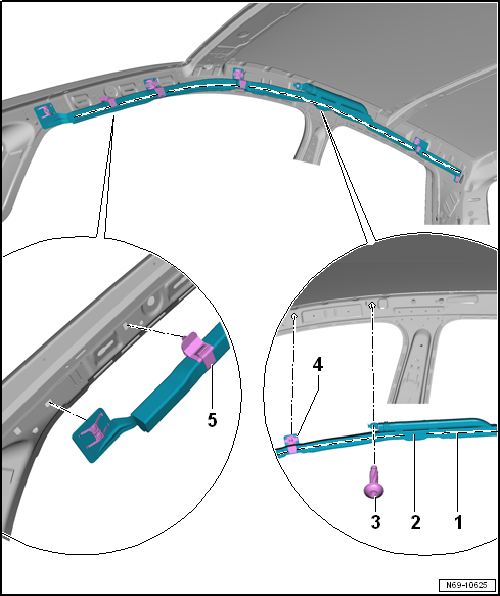

Assembly overview - curtain airbag

1 -	Line to prevent twisting

Is used to ensure that curtain airbag is not twisted.
Must be entirely visible after installation

2 -	Curtain airbag

Driver side: with driver side curtain airbag igniter -N251-
Front passenger side: with front passenger side curtain airbag igniter -N252-

WARNING

Observe safety instructions for pyrotechnic components → Chapter.

Removing and installing, 2-door and 4-door model: → Chapter
Removing and installing, estate: → Chapter

3 -

Bolt

Renew after removal
4.5 Nm

4 -	Retaining clip

Qty. 5

5 -	Retaining clip

Curtain airbags

...

Removing and installing curtain airbag with igniter, 2-door and 4-door models
