Special tools and workshop equipment required

Torque wrench -V.A.G 1332-

Adjusting front axle toe

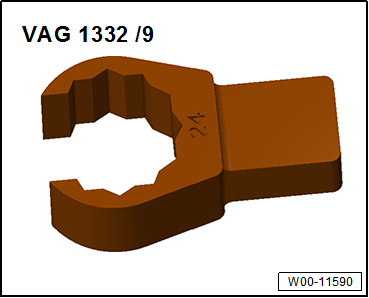

Socket -V.A.G 1332/9-

Adjusting front axle toe

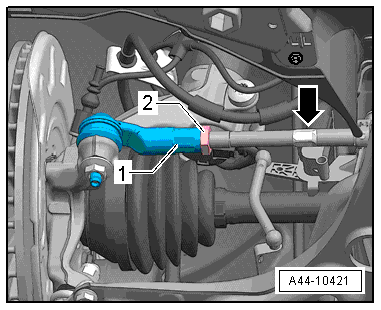

–	Counterhold track rod ball joint -1- with a suitable tool when loosening and tightening lock nut -2-.

–	Loosen lock nut -2-.

–	Adjust toe setting at both wheels by turning hexagon flats -arrow-.

Note

Ensure that bellows on steering rack are not damaged or twisted. Twisted boots wear out quickly.

Tighten lock nuts on threaded portion only when vehicle is standing on its wheels - track rod ball head must be parallel with steering lever of suspension strut.

–	Tighten lock nut -2- and check toe setting again.

The setting may change slightly after lock nut -2- is tightened .

However, if the measured toe value lies within the tolerance, the adjustment is correct → Chapter „Specified values for wheel alignment“.

Specified torques

→ Chapter „Repairing steering rack“

Adjusting front axle toe

Adjusting toe on rear axle, multi-link suspension

Special tools and workshop equipment required Torque wrench -V.A.G 1332- ...

Wheel runout compensation

If run-out compensation is not performed, it is not possible to adjust toe-in correctly! The existing lateral run-out of the wheel must be comp ...
