Volkswagen Golf Service & Repair Manual: Adjusting striker pin

Special tools and workshop equipment required



Torque wrench -V.A.G 1331-
Torque wrench -V.A.G 1331-



Socket -3410-
Socket -3410-

  Note

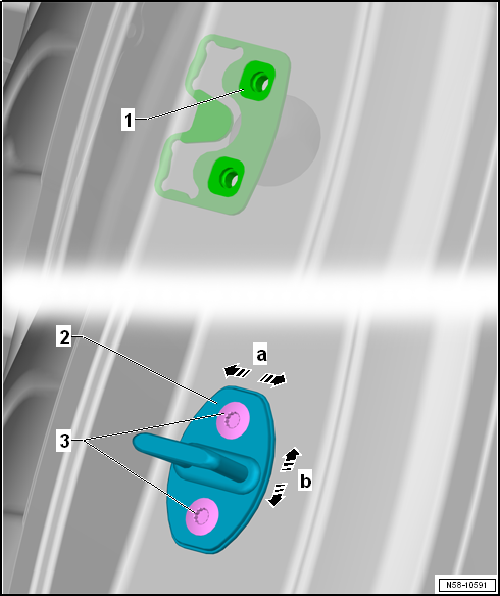

  Threaded plate -1- of striker pin is secured in pillar using a method which differs from the previous method.
  Bow outside of threaded plate is welded firmly to pillar. Webs to threaded plate are plastically deformable.
  Substantial force must be applied so that striker pin -2- can be adjusted with bolts -3- loosened.

Adjusting striker pin

  Note
  Only the adjustment for the left front door is described. The adjustment of the right front door is similar.
  The rear door must lock fully when closing without any additional force being required and must not have any play.
  The rear door must not be pushed up or down as a result of the striker pin adjustment.
Striker pin can be used to align rear door flush with side panel (to prevent wind noise) -arrows-.
–  Loosen striker -2- by loosening bolts -3- in C-pillar.
  Note
Substantial force must be applied so that striker pin -2- can be adjusted with bolts -3- loosened.
–  Tighten bolts -23- of striker pin -2-.
  Component Specified torques
Striker pin 20 Nm
Adjusting door
Special tools and workshop equipment required   Door alignment tool -3320-   Universal joint for 3320 -3 ...

Removing and installing door arrester
Special tools and workshop equipment required       Note Removal and installation are only described ...
