Removing

Note

The tank pressure sensor -G400- is located in the pressure regulating valve on the activated charcoal filter → Chapter.

–	Remove activated charcoal filter → Chapter.

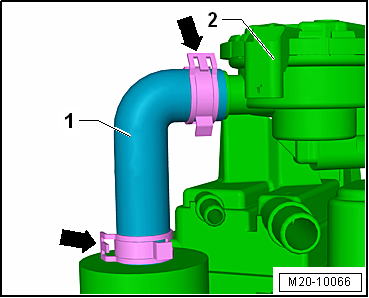

–	Remove hose -1- from activated charcoal filter -2-.

–	To do this, loosen clamps -arrows-.

Removing and installing tank pressure sensor -G400

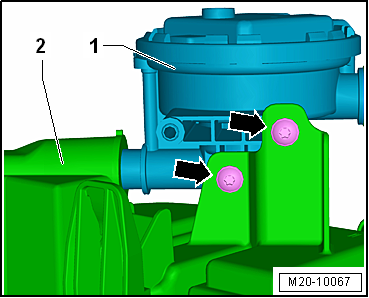

–	Unscrew bolts -arrows- for pressure regulating valve -1- on activated charcoal filter -2-.

Removing and installing tank pressure sensor -G400

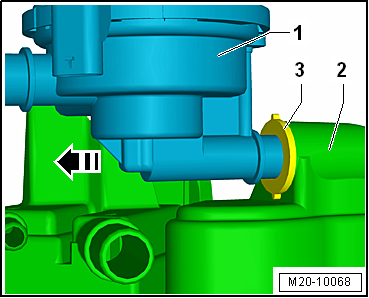

–	Pull pressure regulating valve -1- in -direction of arrow- out of seal -3- on activated charcoal filter -2-.

Installing

Removing and installing tank pressure sensor -G400

Install in reverse order. In the process, note the following:

–	Make sure that seal -3- is properly seated.

Specified torque

→ Chapter „Assembly overview - activated charcoal filter system“

Removing and installing tank pressure sensor -G400
