Volkswagen Golf Service & Repair Manual: Removing tyre from wheel
| Tyres which have been filled or sealed using tyre sealant
must be drained before removal. |
Caution
| Avoid eye and skin contact with tyre sealant. |
| It is a health hazard and may cause eye irritation
and allergies. |
| During this work, wear protective gloves and safety
goggles. |
|
| – |
Place the wheel on an even surface. |
| – |
Unscrew and remove the valve insert of tyre valve. |
|
|
|
| – |
Use a suitable drill or mill to carefully drill a hole in
shoulder area of tyre. |
| – |

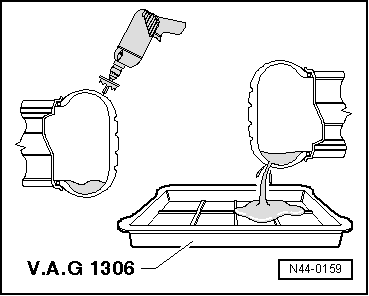

Hold wheel over a suitable container and drain sealant. |
| – |
Clean wheel rim with, for example, a moist cloth. |
|
|
|
Ensure that the wheel rim is clean.
–
Insert new tyre valve with -VAS 6459--1-.
...
