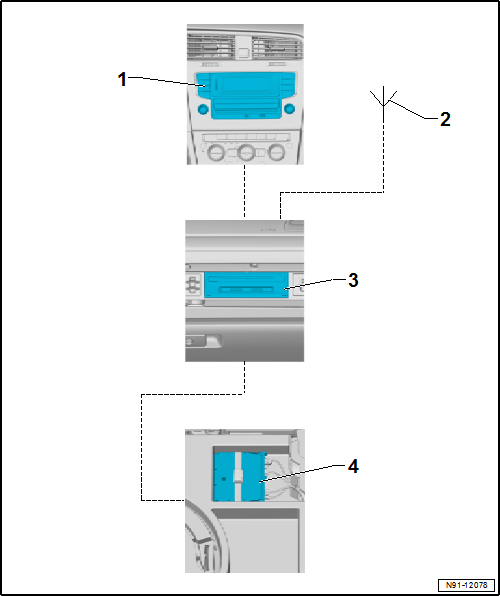

Fitting locations overview - TV system

1 -  Display unit for control device of front display and information control panel -J685-
Removing and installing → Chapter „Removing and installing radio -R-, Composition Touch and Composition Colour version“
Removing and installing → Chapter „Removing and installing infotainment system display“
2 -  Rear window aerial
Fitted in rear lid → Chapter „Aerial systems“
3 -  Control unit 1 for information electronics -J794-
Installed in glove compartment
Removing and installing → Chapter „Removing and installing control unit 1 for information electronics -J794-“
4 -  Digital TV tuner -R171-
In luggage compartment on right under floor, eGolf
Installed under right front seat, Golf
Removing and installing → Chapter „Removing and installing TV tuner“
