Volkswagen Golf Service & Repair Manual: Removing and installing valve, metal valve

Special tools and workshop equipment required

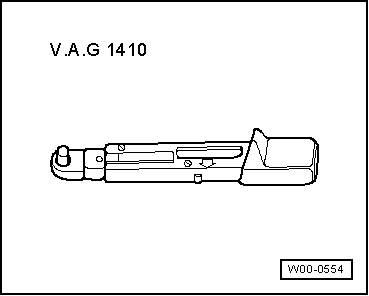

Torque wrench -V.A.G 1410-
Carry out the following work:
Removing
–  Remove tyre pressure sensor → Chapter.


Removing and installing valve, metal valve

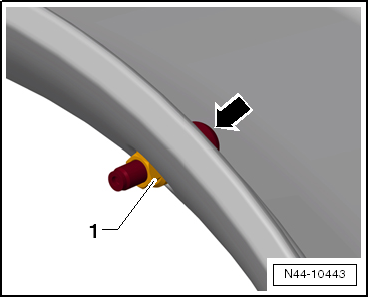

–  Remove nut -1- from metal valve.
–  Counterhold on metal valve (for example using 2 mm twist drill) -arrow-.
Installing
  Caution
Tighten nut for metal valve to specified torque. Retightening is impermissible, as the seal may otherwise be damaged.


Removing and installing valve, metal valve

–  Tighten nut -1- of metal valve.
–  Counterhold on metal valve (for example using 2 mm twist drill) -arrow-.
–  Install tyre pressure sensor → Chapter.
Specified torques
→ Chapter „Assembly overview - tyre pressure sensor, tyre pressure sensor without valve“
