Volkswagen Golf Service & Repair Manual: Removing and installing rear tunnel cross-piece

Special tools and workshop equipment required

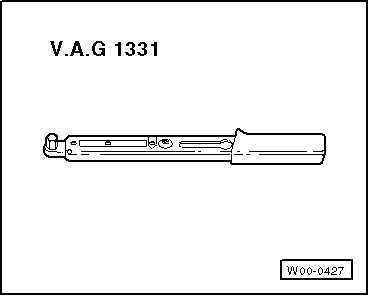

Torque wrench -V.A.G 1331-
Torque wrench -V.A.G 1331-

Removing and installing rear tunnel cross-piece

Removing
–  Loosen rear underbody panel and press downwards slightly → Chapter.

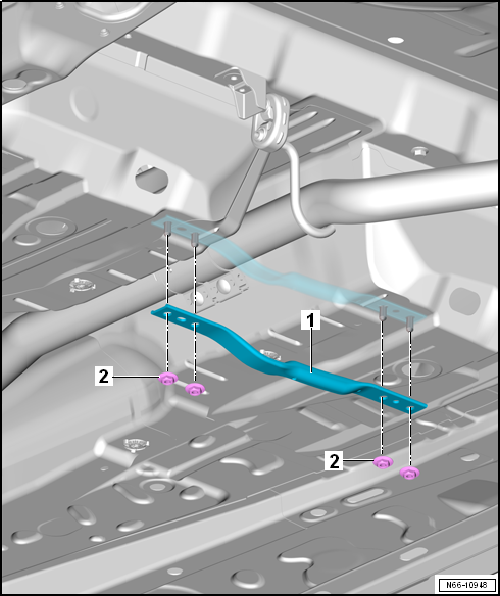

–  Remove nuts -2-.
–  Remove rear tunnel cross-piece -2-.
Installing
Install in the reverse order of removal observing the following:
Specified torques
  Nuts → Item
