Volkswagen Golf Service & Repair Manual: Removing and installing front tunnel cross-piece
|
|
|
| Removing |
| – | If fitted, remove centre underbody panel → Chapter |

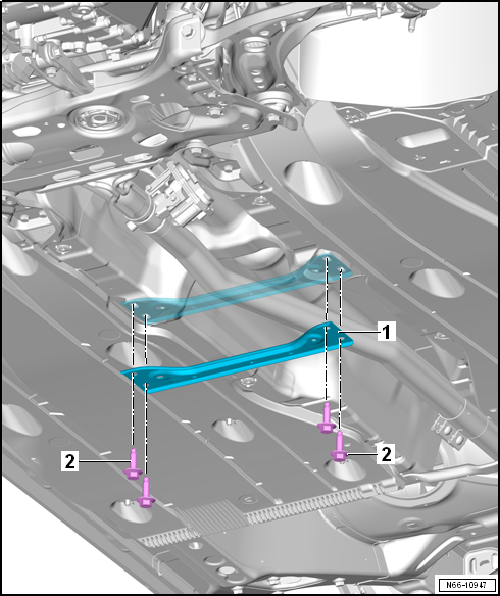

| – | Remove bolts -2-. |
| – | Remove front tunnel cross-piece -1-. |
| Installing |
| Install in the reverse order of removal observing the following: |
| Specified torques |
| Bolts → Item |
Removing and installing rear underbody cover – e-Golf
Removing
–
Remove bolts -2-.
–
Unscrew nuts -3-.
–
Remove underbody cover -1-.
Installing
...
Removing and installing rear tunnel cross-piece
Special tools and workshop equipment
required
Torque wrench -V.A.G 1331-
...
Other materials:
Removing and installing high-voltage heater (PTC) -Z115- / high-voltage
heater (PTC) -J848
Special tools and workshop equipment
required
Commercially available Torx socket bit “TS30H” with hole in
front face
Hose clamps, up to 25 mm -3094-
Engine bung set -VAS 6122- ...
Refrigerant circuit with restrictor and reservoir
1 -
Air conditioner compressor
2 -
Condenser
3 -
Restrictor
4 -
Evaporator
5 -
Reservoir with dryer cartri ...
