Volkswagen Golf Service & Repair Manual: Removing and installing oil pressure switch -F1-

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine lubrication / Oil filter, oil pressure switch / Removing and installing oil pressure switch -F1-

Special tools and workshop equipment required

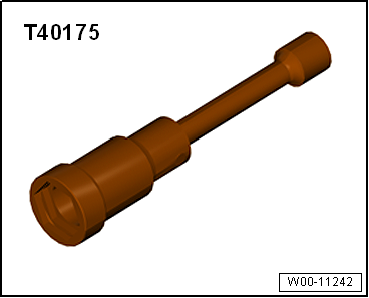

Jointed wrench 24 mm -T40175-

Removing

Note

Fit all heat insulation sleeves in the original position when installing.

–	Remove noise insulation → General body repairs, exterior; Rep. gr.66.

Removing and installing oil pressure switch -F1-

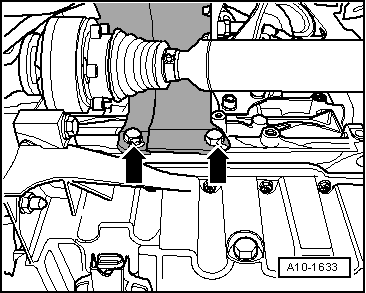

–	Unscrew bolts -arrows- and remove heat shield for right drive shaft.

–	Remove heat-shield sleeve.

Removing and installing oil pressure switch -F1-

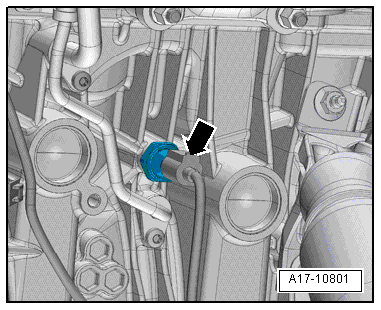

–	Disconnect electrical connector -arrow-.

Note

Place a cloth underneath to catch escaping engine oil.

–	Remove oil pressure switch -F1-.

Installing

Installation is carried out in the reverse order; note the following:

Note

The seal cannot be replaced individually.

If removed, oil pressure switch must be renewed.

Screw in new oil pressure switch -F1- immediately in hole to avoid loss of oil.

–	Check oil level → Booklet.

Specified torques

→ Chapter „Assembly overview - oil filter/oil pressure switch“

→ Running gear, axels, steering; Rep. gr.40

Removing and installing oil pressure switch -F1-

Assembly overview - oil filter/oil pressure switch

1 - Oil filter Remove and install with oil filter tool -3417-. Before installing, lightly coat seal with clean engine oil. ...

Removing and installing oil pressure switch for reduced oil pressure -F378-

Special tools and workshop equipment required Jointed wrench 24 mm -T40175- Remo ...
