Volkswagen Golf Service & Repair Manual: Removing and installing mirror cover trim

  Note
  •   Removal and installation are described for the mirror cover trim on driver side. Follow same instructions for the front passenger side as appropriate.
  •   Removal and installation are illustrated for 4-door vehicles. Removal and installation on 2-door vehicles are analogous.

Removing
–  Remove front door trim → Chapter.

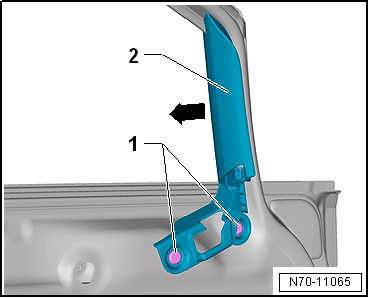

–  Remove clips -1- for mirror cover trim -2-.
–  Pull mirror cover trim -2- towards rear off front door -arrow-.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.
