Volkswagen Golf Service & Repair Manual: Removing and installing drive shaft heat shield

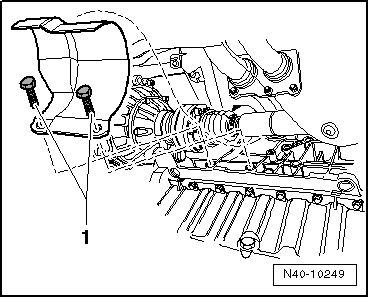

Front-wheel drive:


Removing and installing drive shaft heat shield

Component Specified torque
Bolts -1- 25 Nm

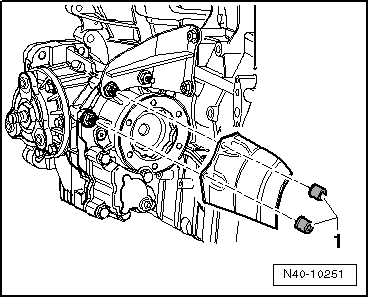

Four-wheel drive:


Removing and installing drive shaft heat shield

Component Specified torque
Nuts -1- 20 Nm
