Volkswagen Golf Service & Repair Manual: Removing automatic distance control unit from and installing on retaining plate, variant 2

Volkswagen Golf Service & Repair Manual / Electrical system / Starter- current supply- CC / Adaptive cruise control / Removing automatic distance control unit from and installing on retaining plate, variant 2

  Note
If the automatic distance control unit -J428- is renewed, start the respective function → Vehicle diagnostic tester.
Special tools and workshop equipment required

Torque wrench -V.A.G 1331-
Removing


Removing automatic distance control unit from and installing on retaining plate, variant 2

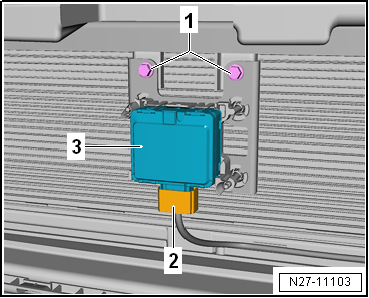

–  Remove bolts -1-.
–  Remove adaptive cruise control unit -J428- with retaining plate -3-.
–  Disconnect electrical connector -2-.
Installing
Install in the reverse order of removal, observing the following:
–  Calibrate adaptive cruise control → Chapter.
Specified torques
→ Chapter „Overview of fitting locations – adaptive cruise control, variant 2“
