Volkswagen Golf Service & Repair Manual: Removing and installing fuel gauge sender -G-, vehicles with four-wheel drive

Volkswagen Golf Service & Repair Manual / Fuel supply system - Petrol engines / Fuel supply, gas operation / Senders and sensors / Removing and installing fuel gauge sender -G-, vehicles with four-wheel drive

Removing
–  Remove fuel delivery unit → Chapter.

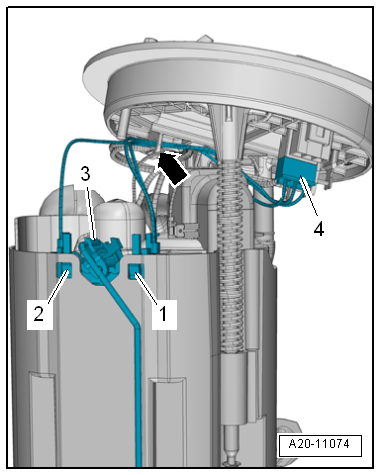

–  Disconnect connector -4- from right flange.

–  Disengage and move clear electrical wiring at retainer -arrow-.
–  Release locking lugs -1 and 2- from tabs.
–  Pull out fuel gauge sender -G--3- upwards.
Installing
Installation is carried out in the reverse order; note the following:
–  Insert fuel gauge sender -G- into guides on fuel delivery unit and press down until it engages.
–  Route and attach electric cables on fuel delivery unit.
–  Install fuel delivery unit → Chapter.
