Volkswagen Golf Service & Repair Manual: Removing and installing emblem with model designation, “R-Line”

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Exterior equipment / Lettering and emblems / Removing and installing emblem with model designation, “R-Line”

Special tools and workshop equipment required



Torque wrench -V.A.G 1783-
Torque wrench -V.A.G 1783-

  Note

Only remove when radiator grille -3- is removed.

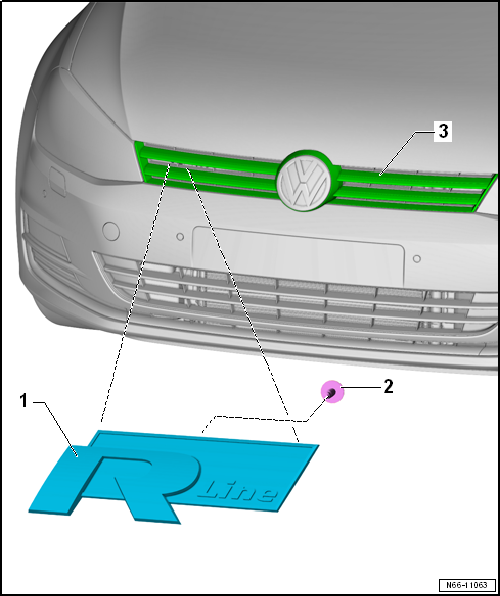

Removing and installing emblem with model designation, “R-Line”

Removing
–  Removing radiator grille → Chapter
–  Unscrew bolt -2- on inner side of radiator grille -3-.
–  Remove “R-Line” emblem -1- from radiator grille -3- towards front.

Installing
Install in the reverse order of removal observing the following:
Specified torques

Component Specified torques
»R Line« emblem 2.0 Nm
Removing and installing model designation on radiator grille
  Note The description applies for all emblems. Here the “GTI” emblem is shown as an example.     Removin ...

Removing and installing emblem with model designation, “R”
Special tools and workshop equipment required         Torque wrench -V.A.G 1783-   ...
