Volkswagen Golf Service & Repair Manual: Removing and installing model designation on radiator grille

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Exterior equipment / Lettering and emblems / Removing and installing model designation on radiator grille

  Note
The description applies for all emblems. Here the “GTI” emblem is shown as an example.


Removing and installing model designation on radiator grille

Removing
–  Removing radiator grille → Chapter

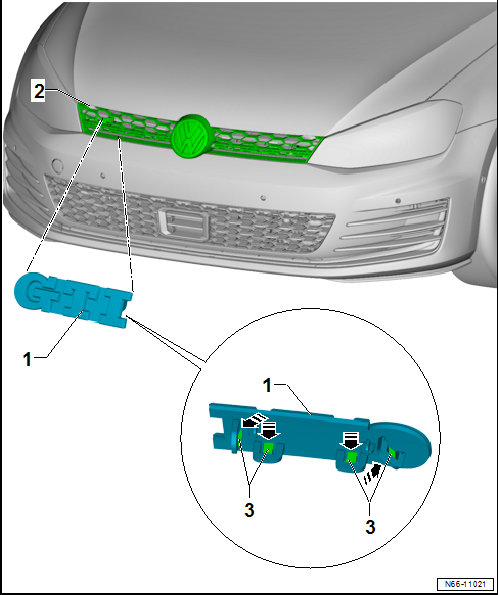

–  Release retaining hooks at rear -3- using a screwdriver -arrows-.
–  Pull emblem with model designation -1- off radiator grille -2-.
Installing
–  Press emblem with model designation -1- onto radiator grille -3- until retaining hooks -3- engage audibly.
Removing and installing manufacturer emblem
  Note The emblem cannot be removed without damage. Removing –  Use a screwdriver -3- to carefully lever manufacturer emblem -1- out of ...

Removing and installing emblem with model designation, “R-Line”
Special tools and workshop equipment required         Torque wrench -V.A.G 1783-   ...
