Volkswagen Golf Service & Repair Manual: Removing and installing emblem with model designation, “R”

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Exterior equipment / Lettering and emblems / Removing and installing emblem with model designation, “R”

Special tools and workshop equipment required

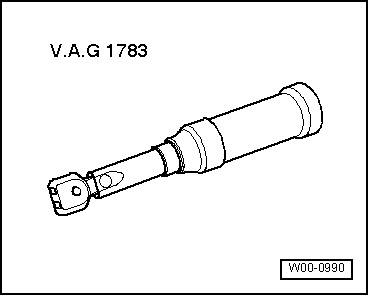

Torque wrench -V.A.G 1783-
Torque wrench -V.A.G 1783-

  Note

Only remove when radiator grille -3- is removed.

Removing and installing emblem with model designation, “R”

Removing
–  Removing radiator grille → Chapter
–  Unscrew bolt -2- on inner side of radiator grille -3-.
–  Remove “R” emblem -1- from radiator grille -3- towards front.
Installing
Install in the reverse order of removal observing the following:
Specified torques

Component Specified torques
“R” emblem 2.0 Nm
Removing and installing emblem with model designation, “R-Line”
Special tools and workshop equipment required         Torque wrench -V.A.G 1783-   ...

Removing and installing emblems at rear
  Note The emblem cannot be removed without damage. Removing –  Use a screwdriver -3- to carefully lever manufacturer emblem -1- off swivel ...
