Volkswagen Golf Service & Repair Manual: Removing and installing Bowden cable
| – |
Remove release lever
→ Chapter. |
| – |

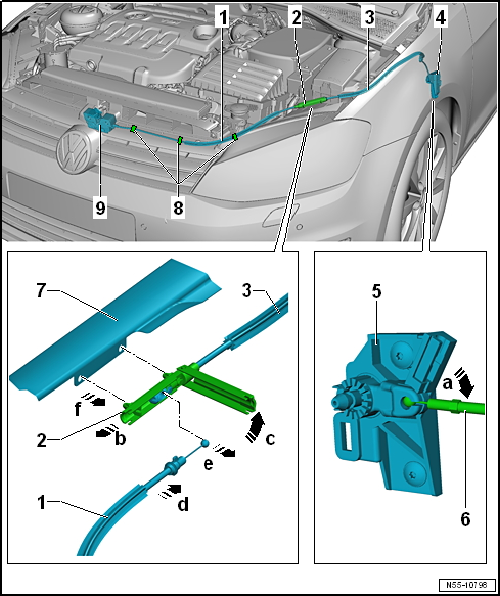

Remove Bowden cable -3- from mounting
bracket -5--arrow a-. |
| – |
Pull Bowden cable coupling -2- off
carrier -7--arrow e-. |
| – |
Slightly pull off Bowden cable -1--arrow a-. |
| – |
Open cap of Bowden cable coupling -arrow b-. |
| – |
Release Bowden cable -1--arrow c- and
remove from Bowden cable coupling -2-. |
Note
| In order to be able to remove or install the Bowden cable
-3-, remove the support arm
-7-
→ Chapter. |
Note
- If the Bowden cable -3- is not removed
from mounting bracket, the Bowden cable -1-
unhooks again and again when installing the Bowden cable coupling
-2-.
- The bonnet cannot be opened in this case
| – |
Hook in Bowden cable -1- into Bowden
cable coupling -2--arrow a-. |
| – |
Slightly pull Bowden cable off Bowden cable coupling
-arrow b-. |
| – |
Close Bowden cable coupling -arrow c-. |
| – |
Push Bowden cable -1- into Bowden cable
coupling -arrow d-. |
| – |
Attach Bowden cable coupling -2- to
lock carrier -4--arrow e-. |
| – |
Install Bowden cable -3- on mounting
bracket -5--arrow a-. |
| – |
Install release lever
→ Chapter. |
| – |
Before closing bonnet, check function of release lever and Bowden
cable. |
Clamp gas strut in vice in area x = 50 mm.
WARNING
Wear protective goggles when sawing.
...
