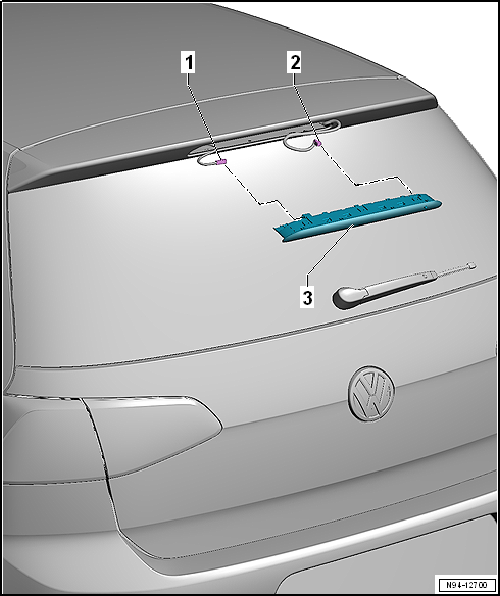

Assembly overview - high-level brake light, Golf

1 -  Brake light connector
2 -  Washer fluid line
3 -  High-level brake light
With high-level brake light bulb -M25-.
Removing and installing → Chapter
High-level brake light
...

Assembly overview – high-level brake light, GTI, GTD and »R«
1 -  Bolt Specified torque 2 Nm 2 -  Brake light connector 3 -  High-level brake light W ...
