Volkswagen Golf Service & Repair Manual: Removing and installing bench seat cover and padding

Removing
–  Remove rear bench seat → Chapter.

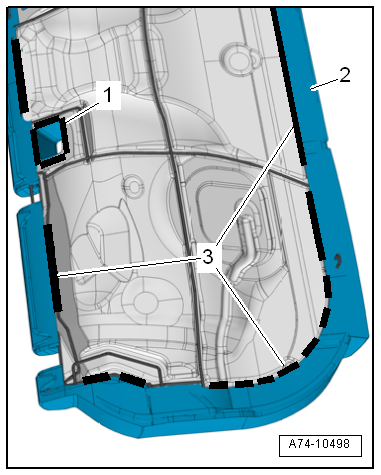

–  Detach beading -3- of seat cover all round from seat frame.
–  Detach beading -1- of seat cover from belt buckle openings.
–  Remove seat cover -2- with seat padding from seat frame.
  Caution
Do not damage seat cover.
Do not pull on seat cover. Otherwise the seat cover might be torn apart.
Installing
Install in reverse order, but note the following:
–  After installation, check that there are no creases in the seat cover.
