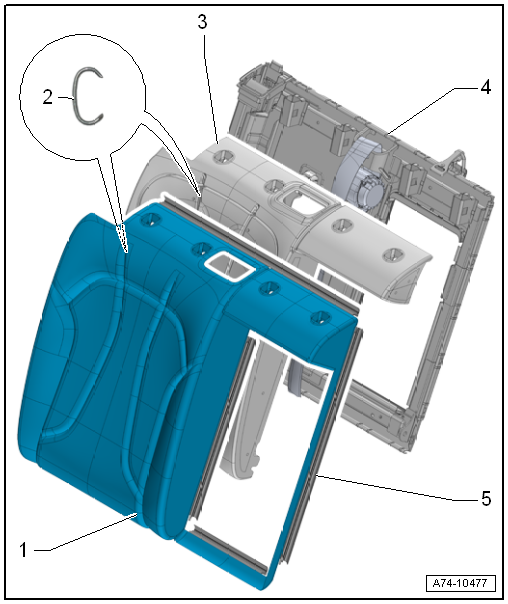

Volkswagen Golf Service & Repair Manual: Assembly overview - rear seat backrest cover and padding
| 1 - | Backrest cover |
- Different equipment versions
- Allocation → Electronic Parts Catalogue
- Removing and installing backrest cover with backrest padding → Chapter
- Separating backrest cover from backrest padding → Chapter
- After installation, check that there are no creases in seat
| 2 - | Upholstery clip |
- For attaching backrest cover to backrest padding
- Renew after removal
- When installing, fit in same location using upholstery clip pliers -V.A.G 1634
| 3 - | Backrest padding |
- Allocation → Electronic Parts Catalogue
- Removing and installing backrest cover with backrest padding → Chapter
- Separating backrest cover from backrest padding → Chapter
| 4 - | Backrest frame |
| 5 - | Beading strips |
- Sewn to backrest cover
- For attaching backrest cover to backrest frame
Assembly overview - cover and padding for bench seat
1 -
Seat frame
2 -
Seat padding
Allocation
→ Electronic Parts Catalogue
Removing and installing seat cover and seat paddi ...
Removing and installing bench seat cover and padding
Removing
–
Remove rear bench seat
→ Chapter.
–
...
