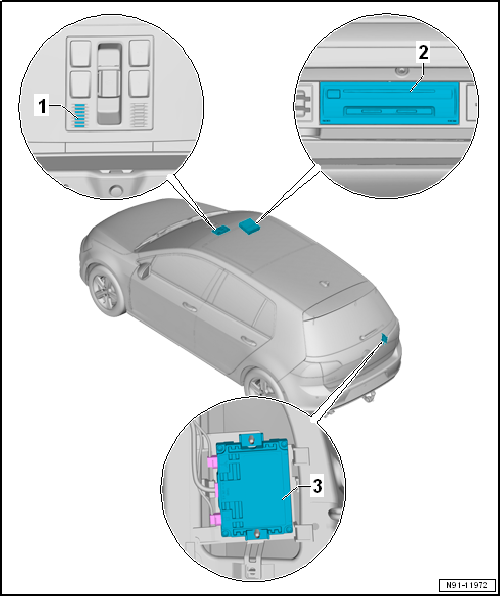

Overview of fitting locations - telephone system

1 -	Telephone microphone -R38-

In front interior light -W1-.

Removing and installing → Chapter

2 -	Control unit 1 for information electronics -J794-

In glove compartment.

Removing and installing → Chapter

3 -	Aerial amplifier for mobile telephone -R86-

Behind luggage compartment side trim panel (right-side)

Removing and installing → Chapter.

Mobile telephone preparation, Bluetooth car phone online

The Bluetooth car phone is integrated in control unit 1 for information electronics -J794-. Connection to mobile telephone -R54- is established via ...

Removing and installing telephone microphone -R38-

Removing – Switch off ignition and all electrical consumers, and remove ignition key. – Removing f ...
