Volkswagen Golf Owners Manual: Overview of the driver door

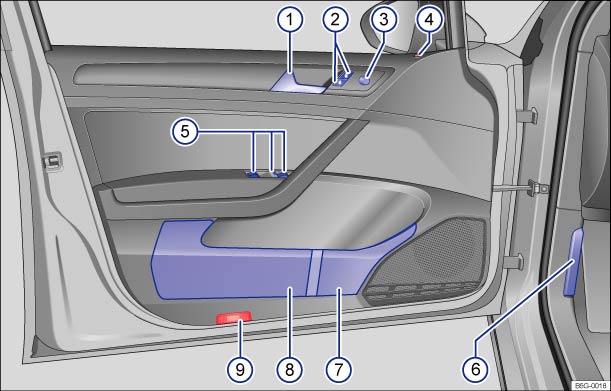

Fig. 4 Overview of the controls in the driver door (left-hand drive vehicles) The controls are mirrored for right-hand drive vehicles

Key for  :

  1. Door release lever  
  2. Central locking buttons for locking and unlocking the vehicle
  3. Switch for adjusting the exterior mirrors  

    • Exterior mirror setting
    • Exterior mirror heating
    • Folding in the exterior mirrors
  4. Indicator lamp for anti-theft alarm or SAFELOCK mechanism  
  5. Buttons for operating the electric windows  

    • Electric windows
    • Safety button for the rear electric windows
  6. Handle for releasing the bonnet  
  7. Bottle holder  
  8. Stowage compartment for high-visibility waistcoat  
  9. Reflector
Vehicle interior
...

Overview of the driver side
Fig. 5 Overview of the driver side (left-hand drive vehicles) Fig. 6 Overview of the driver side (right-hand drive vehicles) Key for   and  : Button for interior monitoring   ...
