Volkswagen Golf Service & Repair Manual: Front centre armrest

Assembly overview - front centre armrest

Assembly overview - front centre armrest

1 -  Front centre armrest

Removing and installing front centre armrest

Removing and installing front centre armrest
  Front seats in foremost position
Removing
–  Remove trim at rear of centre console → Chapter.

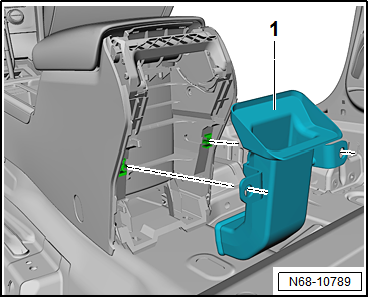

–  Pull off air duct -1-.


Removing and installing front centre armrest

–  Carefully release side trims of centre console at rear from catches, and push them slightly outwards.

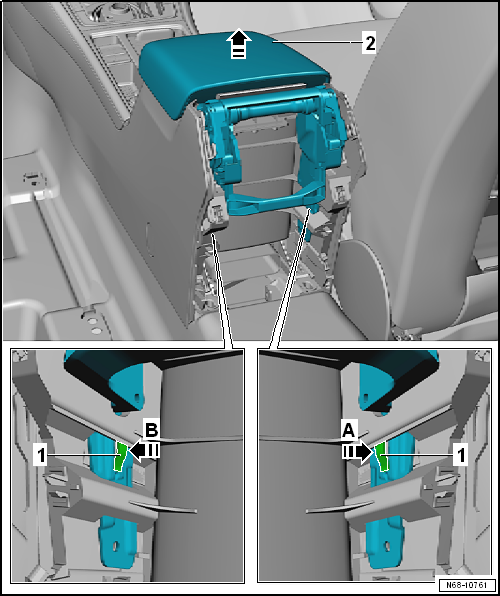

–  Using suitable pliers, push locking lugs -1- outwards -arrow A- and -arrow B-.
–  Pull front centre armrest -2- upwards out of centre console -arrow-.

Removing and installing front centre armrest


Installing

–  Bend locking lugs -1- back into their original positions.
–  Engage front centre armrest -2- in respective mountings in centre console.
Further installation is performed in the reverse order of removal.

Removing and installing front centre armrest

Removing and installing centre console retainer, securing bracket and insulation for selector mechanism, e-Golf only
Special tools and workshop equipment required       Torque wrench -V.A.G 1783- ...
