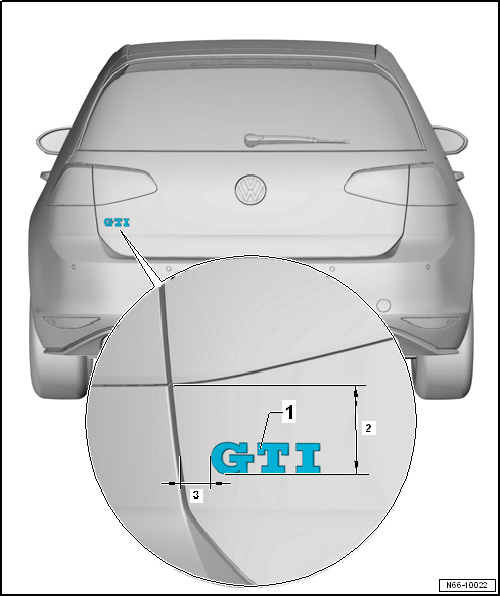

Volkswagen Golf Service & Repair Manual: Dimensions - lettering on rear lid, “GTI/GTD”
Note| When fitting the lettering, observe the fitting notes → Anchor. |
| 1 - | Lettering |
- Model designation
| 2 - | Height dimension |
- 75.5 ± 1 mm, from lower edge of lettering to tail light.
| 3 - | Horizontal dimension |
- 26.5 ± 1 mm, from outer edge of rear lid to lettering
Dimensions - lettering on rear lid
Note
When fitting the lettering, observe the fitting notes
→ Anchor.
1 -
Lettering
Model designation.
2 - ...
Dimensions – “e-Golf” lettering on rear lid
Note
When fitting the lettering, observe the fitting notes
→ Anchor.
1 -
Lettering
Model designation
2 -
...
