–  Attach rim to wheel balancing machine.
–  Use the centring system for wheel balancing machines -VAS 5271-.
–  Preload tyre gauge approx. 2 mm.
–  Turn rim slowly.

–  Make a note of the smallest and largest deflection of the indicator needle.

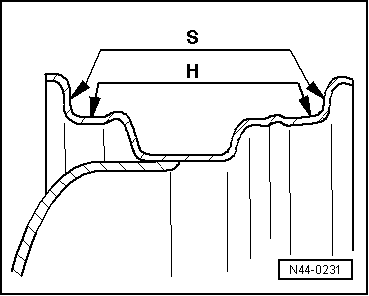

S -  Lateral run-out
H -  Radial run-out
–  Compare the measured values with the specifications in the table → Anchor.
  Note
Extreme values on the tyre gauge due to small irregularities may be disregarded.


Balancing wheel, checking radial and lateral run-out on wheel rim

Specifications for radial and lateral run-out on wheel
Rim Radial run-out (mm) Lateral run-out (mm)
Steel wheel 0,5 0,5
Alloy wheel 0,5 0,8

  Note
If the measured value exceeds the specification, acceptably smooth running cannot be attained.
Balancing wheel, checking radial and lateral run-out of wheels and tyres
Before you start balancing the wheels, the following requirements must be met. Tyre pressure must be OK. Tread mus ...
