Volkswagen Golf Service & Repair Manual: Removing and installing lumbar support adjustment motor -V125-/-V126-/-V129-/-V130-

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Seat frames / Front seats / Removing and installing lumbar support adjustment motor -V125-/-V126-/-V129-/-V130-

Special tools and workshop equipment required

  Special pop rivet pliers -V.A.G 1753B-
  Hand drill
  Safety goggles
Removing
–  Remove front seat → Chapter.
–  Secure front seat on seat repair stand → Chapter.
–  Remove backrest cover and backrest padding → Chapter.


Removing and installing lumbar support adjustment motor -V125-/-V126-/-V129-/-V130-

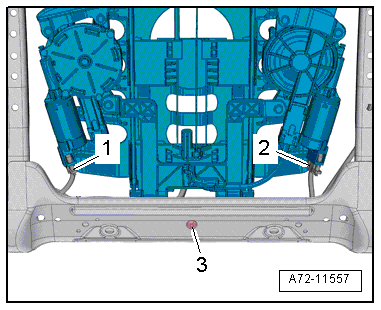

–  Release and pull off connectors -1 and 2- on motors.
  WARNING
Risk of eye injury.
Wear eye protection.
–  Drill out rivet -3-.
Vehicles with entry assistance
–  Cut through cable tie for Bowden cable for backrest release mechanism.


Removing and installing lumbar support adjustment motor -V125-/-V126-/-V129-/-V130-

Continued for all vehicles
–  Swing lumbar support -1- at bottom towards front.

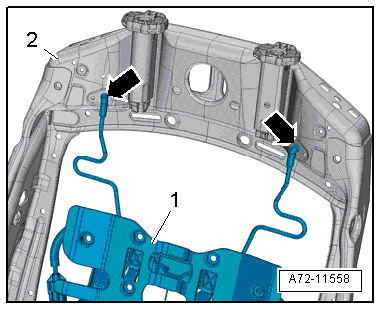

–  Detach lumbar support -1- on top from backrest frame -2--arrows- and remove it.
Installing
Install in reverse order, but note the following:
–  Attach lumbar support -1- on top to backrest frame -2--arrows- and swing toward rear at bottom.
–  Rivet lumbar support to backrest frame.
Specified torques
  → Chapter „Assembly overview - front backrest“
  → Chapter „Assembly overview - front seat“


Removing and installing lumbar support adjustment motor -V125-/-V126-/-V129-/-V130-

Removing and installing lumbar support adjustment switch -E176-/-E177-
  Note Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate. &nbs ...

Removing and installing seat adjustment operating unit -E470-/-E471-
  Note Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate. ...
