Volkswagen Golf Service & Repair Manual: Balancing wheel, checking radial and lateral run-out of wheels and tyres

Volkswagen Golf Service & Repair Manual / Wheels and Tyres Guide - General Information / Fitting tyre / Balancing wheel / Balancing wheel, checking radial and lateral run-out of wheels and tyres

Before you start balancing the wheels, the following requirements must be met.
Tyre pressure must be OK.
Tread must not be worn on one side. Tread depth should be at least 4 mm.
The tyre must not show any signs of damage, for example cuts, piercing, foreign bodies, etc.
Wheel suspension and steering, including shock absorbers, must be in perfect condition.
Road test has been carried out → Chapter.
Radial and lateral run-out occur when the wheel and tyre do not run absolutely true.
For technical reasons, 100% true running is not possible.
Therefore, the manufacturers of these components allow a precisely determined tolerance.
Aligning the tyre in an unfavourable position on the wheel can cause the maximum allowed tolerance for wheel with tyre to be exceeded.

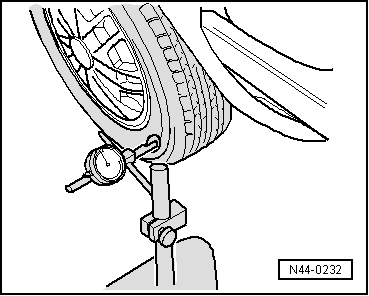

Checking lateral run-out
–  Preload tyre gauge approx. 2 mm.

–  Fit tyre gauge to side wall of tyre.
–  Turn wheel slowly.
–  Make a note of the smallest and largest deflection of the indicator needle.
  Note
If the difference is greater than 1.3 mm, the lateral run-out is too great.
In this case, the radial run-out can be reduced by matching wheel and tyre → Chapter.
Extreme values on the tyre gauge due to small irregularities in the rubber may be disregarded.

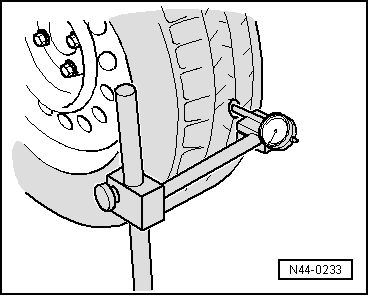

Checking radial run-out
–  Preload tyre gauge approx. 2 mm.


Balancing wheel, checking radial and lateral run-out of wheels and tyres

–  Fit tyre gauge to running surface of tyre.
–  Turn wheel slowly.
–  Make a note of the smallest and largest deflection of the indicator needle.
  Note
If the difference is greater than 1 mm, the radial run-out is too great.
In this case, the radial run-out can be reduced by matching wheel and tyre → Chapter.
The table shows the maximum permissible tolerances for a wheel with mounted tyre.
Tolerances for radial and lateral run-out of rim with tyre


Balancing wheel, checking radial and lateral run-out of wheels and tyres

Wheel with tyre Radial run-out (mm) Lateral run-out (mm)
Passenger cars 0,9 1,1 (1.3 in vicinity of lettering)
Balancing wheel, balancing wheel with finish balancer
Before you start balancing the wheels, the following requirements must be met. Tyre pressure must be OK. Tread mus ...

Balancing wheel, checking radial and lateral run-out on wheel rim
–  Attach rim to wheel balancing machine. –  Use the centring system for wheel balancing machines -VAS 5271-. ...
