Volkswagen Golf Service & Repair Manual: Wheel change, position of anti-theft wheel bolts for steel wheels

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Wheels, tyres, axle align / Wheels, tyres / Wheel change, position of anti-theft wheel bolts for steel wheels

  Caution
Adherence to position of anti-theft wheel bolts to tyre valve on steel wheels is vital.

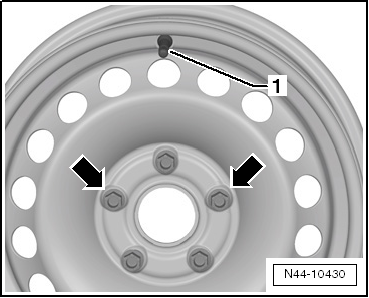

Anti-theft wheel bolts may only be fitted on right or left -arrows- of valve -1- on steel wheels.
Secure installation of hub cap on steel wheel is only possible if anti-theft wheel bolts are installed in this position.


Wheel change, position of anti-theft wheel bolts for steel wheels

Torque settings for wheel bolts

Wheel bolt to wheel hub for all vehicles:
Specified torque: 120 Nm
–  Before fitting wheel, protect wheel centring seat against corrosion → Chapter.
Position of anti-theft wheel bolts for steel wheels → Chapter.
Install anti-theft wheel bolts using adapter set for wheel bolts.
