Volkswagen Golf Service & Repair Manual: Wheel bolts, versions

Explanations regarding types of convex seats
There are two different versions of convex tapered seats, the spherical seat and the tapered.

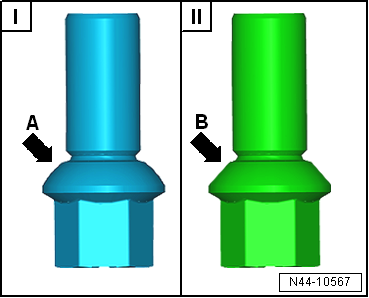

The spherical seat is the curved surface of a section of a sphere -arrow A-. This type of convex seat is sometimes used for genuine wheel rims.
The tapered seat is the flat surface of a section of a taper -arrow B-. This type of convex seat is sometimes used for wheel rims of the accessories trade.
I -  Wheel bolts with spherical seat
II -  Wheel bolts with tapered seat
  Note
Make sure the correct wheel bolts are fitted → Electronic Parts Catalogue “ETKA”.
On each vehicle, the same wheel bolts must be used for all 4 wheel rims.


Wheel bolts, versions

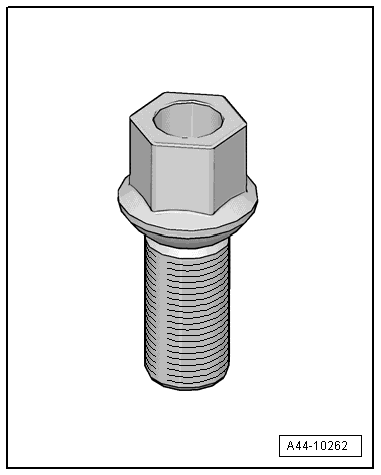

Standard, one-piece wheel bolt


Wheel bolts, versions

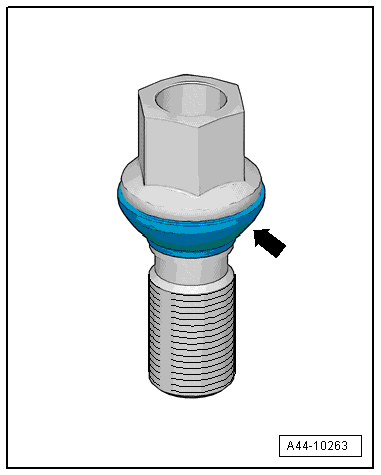

Two-piece wheel bolt with short rotary convex seat


Wheel bolts, versions

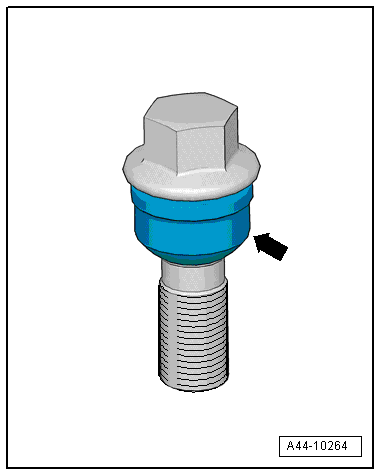

Two-piece wheel bolt with long rotary convex seat


Wheel bolts, versions

Wheel bolts, anti-theft wheel bolt

Anti-theft wheel bolt

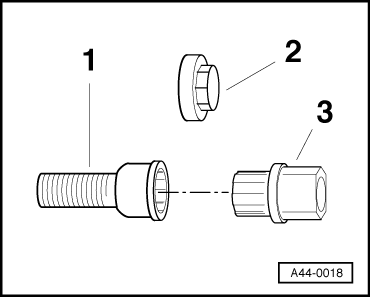

1 -  Anti-theft wheel bolt
2 -  Cover cap
3 -  Adapter for wheel bolt


Wheel bolts, anti-theft wheel bolt

Wheel bolts
...

Wheel bolts, adapter sets for anti-theft wheel bolts
