Volkswagen Golf Service & Repair Manual: Removing and installing air duct for centre dash panel vent

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Air conditioner / Air duct / Removing and installing air duct for centre dash panel vent

Removing

–  Remove dash panel → General body repairs, interior; Rep. gr.70.

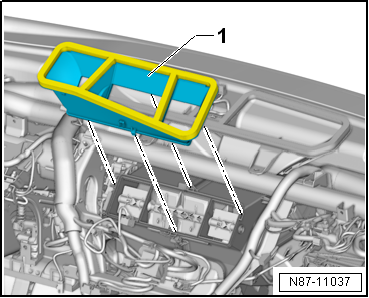

–  Remove air duct for centre dash panel vent -1- upwards from heater and air conditioning unit.
Installing
Installation is carried out in reverse order of removal.
Specified torques
Dash panel; Assembly overview - dash panel → General body repairs, interior; Rep. gr.70.


Removing and installing air duct for centre dash panel vent
