Note

Removal and installation are described for the trim panel on driver side. Follow same instructions for the front passenger side as appropriate.

Removing

–	Remove rear door trim → Chapter.

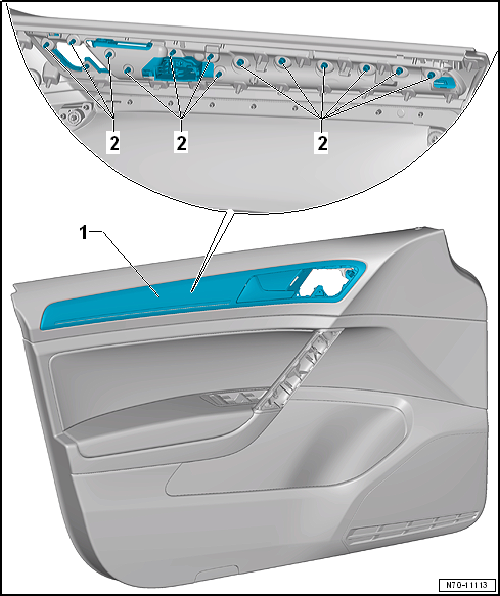

–	Using an appropriate drill bit, drill mounting points -2- of trim panel -1- off door trim, but just until trim panel starts to detach from door trim.

Caution

The door trim must not be damaged when drilling.

–	Carefully release mounting points -2- one after the other and remove trim panel -1- from door trim.

Removing and installing trim panel

Installing

Clamping washers near trim panel: qty. 7, 17 mm Ч 7.5 mm. Allocation → Electronic Parts Catalogue

Clamping washers near inner door handle: qty. 6, 13.4 mm Ч 6 mm. Allocation → Electronic Parts Catalogue

–	Insert new trim panel -1- into door trim.

–	Press clamping washers -2- as far as stop onto pins -3- of trim panel.

–	Press remaining clamping washers onto pins of trim panel near inner door handle as described.

–	Cut back pins -3- of trim panel above clamping washers -2- to max. 2 mm beyond washers.

–	Install rear door trim → Chapter.
