Volkswagen Golf Service & Repair Manual: Removing and installing mounting bracket, LHD vehicles

Volkswagen Golf Service & Repair Manual / Brake system / Brake, brake mechanics / Brake pedal / Removing and installing mounting bracket, LHD vehicles

Remove dash panel end cover on driver side → General body repairs, interior; Rep. gr.70.
–  Remove footwell cover on driver side → General body repairs, interior; Rep. gr.68.
–  Remove centre console cover on driver side → General body repairs, interior; Rep. gr.68.
–  Remove storage compartment on driver side → General body repairs, interior; Rep. gr.68.
–  Remove dash panel cover on driver side → General body repairs, interior; Rep. gr.68.

–  Remove knee airbag -1- → General body repairs, interior; Rep. gr.69.


Removing and installing mounting bracket, LHD vehicles

–  Remove footwell vent on driver side → Heating, air conditioning system; Rep. gr.87.
–  Unbolt crash bar for brake pedal and lay it to one side → General body repairs, interior; Rep. gr.70.


Removing and installing mounting bracket, LHD vehicles

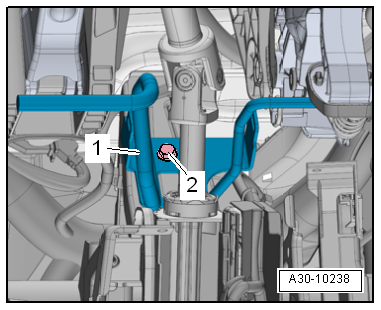

–  Unscrew bolt -2-, detach crash bar -1- and push it to one side.


Removing and installing mounting bracket, LHD vehicles

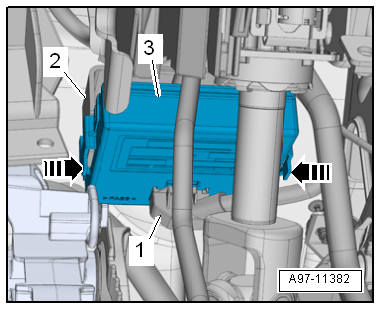

–  Remove control unit for data bus diagnostic interface -J533--3- and lay it to one side. → Electrical system; Rep. gr.97.
–  Separate brake pedal from brake servo → Chapter.
–  Pull connector off accelerator pedal position sender.


Removing and installing mounting bracket, LHD vehicles

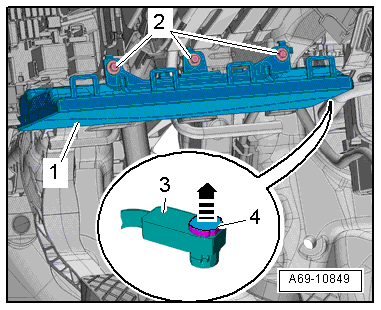

–  Unscrew bolts -1- and fold footwell trim -2- in direction of arrow towards vehicle interior.


Removing and installing mounting bracket, LHD vehicles

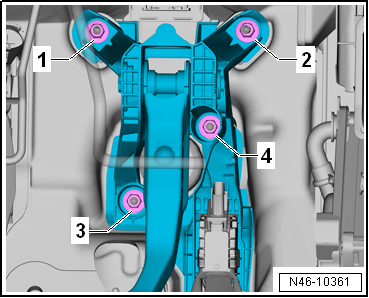

–  Unscrew nuts -1 to 4-.
–  Carefully remove foot pedal cluster.
Installing
Install in reverse order of removal, observing the following:
–  Connect brake pedal to brake servo → Chapter.


Removing and installing mounting bracket, LHD vehicles

Tightening sequence for securing nuts:
Specified torques
→ Chapter „Assembly overview - brake pedal, LHD vehicles“
Crash bar → General body repairs, interior; Rep. gr.70.
Footwell vents → Heating, air conditioning system; Rep. gr.87.
Knee airbag → General body repairs, interior; Rep. gr.69.
Covers on driver side → General body repairs, interior; Rep. gr.68


Removing and installing mounting bracket, LHD vehicles
