Removing

–	Remove bench seat / single seats → Chapter.

Right side: belt buckle with belt end fitting

Note

The belt buckle with belt end fitting is part of the rear centre seat belt.

–	Detach electrical connector -2- for belt switch.

–	Unscrew nut -1-.

–	Remove belt buckle -3- from belt end fitting.

Removing and installing rear belt buckle

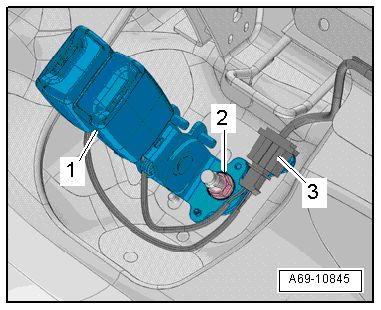

Left side: double belt buckle

–	Detach electrical connector -3- for belt switch.

–	Unscrew nut -2-.

–	Remove double belt buckle -1-.

Installing

Installation is carried out in reverse order.

Specified torques

→ Chapter „Assembly overview - rear belt buckle“

Removing and installing rear belt buckle

Removing and installing belt height adjuster, 4-door model and estate

Removing – Press belt height adjuster button and move slider of belt height adjuster to lowest position. –&nbs ...
