Special tools and workshop equipment required



Removal wedge -3409
Removal wedge -3409



Torque wrench -V.A.G 1783-
Torque wrench -V.A.G 1783-

Removing
–  Open front centre armrest.

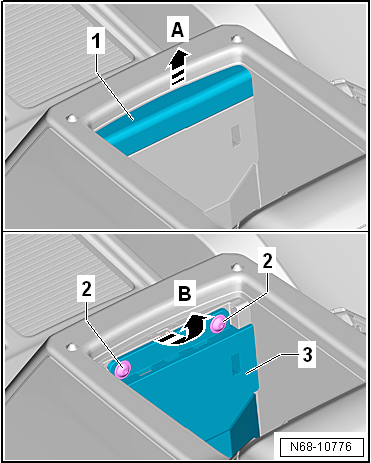

–  Unclip trim strip -1- in -direction of arrow A- using removal wedge -3409-, and remove it.
–  Remove bolts -2-.
–  Carefully remove mounting plate with retaining strap -3- in -direction of arrow B-, until connectors are accessible.
–  Disconnect connectors on mounting plate with retaining strap -3-, and remove mounting plate with retaining strap.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.
Specified torques


Removing and installing mounting plate with retaining strap

Component Specified torque
Mounting plate with retaining strap on centre console 1.5 Nm
