Volkswagen Golf Service & Repair Manual: Removing and installing luggage compartment cover

Removing

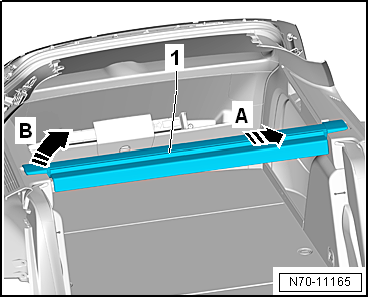

–  Open luggage compartment cover -1- completely.
–  Fold down rear seat backrests.
–  Push luggage compartment cover -1- in -direction of arrow A-.
–  At the same time, lift luggage compartment cover -1- upwards out of right luggage compartment side trim -arrow B-.
–  Pull luggage compartment cover -1- out of left luggage compartment side trim, and remove it.
Installing
Installation is carried out in reverse order.


Removing and installing luggage compartment cover
