Volkswagen Golf Service & Repair Manual: Removing and installing exhaust camshaft oil seal, gearbox end, engine codes CHPA, CMBA, CPVA, CXSA, CZDA, CZCA, CPVB

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine cylinder head, valve gear / Valve gear / Removing and installing exhaust camshaft oil seal, gearbox end, engine codes CHPA, CMBA, CPVA, CXSA, CZDA, CZCA, CPVB

Special tools and workshop equipment required

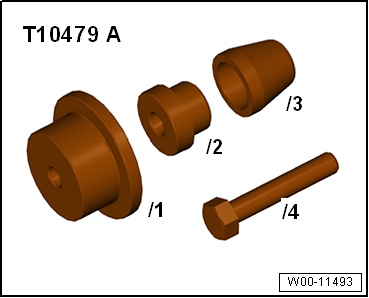

Assembly tool -T10479 A-
Removing
–  Remove toothed belt pulley for coolant pump → Chapter.


Removing and installing exhaust camshaft oil seal, gearbox end, engine codes CHPA, CMBA, CPVA, CXSA, CZDA, CZCA, CPVB

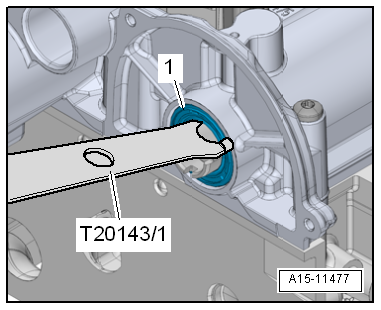

–  Carefully fit extractor hook -T20143/1- between camshaft and seal -1-.
–  Lever out seal.
Installing


Removing and installing exhaust camshaft oil seal, gearbox end, engine codes CHPA, CMBA, CPVA, CXSA, CZDA, CZCA, CPVB

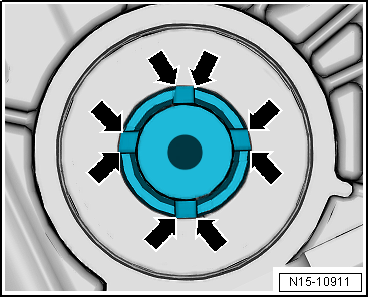

–  Remove any burrs in the outer area of the grooves in the exhaust camshaft -arrows- using fine sandpaper (220–1000 P).
  Note
Do not lubricate new seal.


Removing and installing exhaust camshaft oil seal, gearbox end, engine codes CHPA, CMBA, CPVA, CXSA, CZDA, CZCA, CPVB

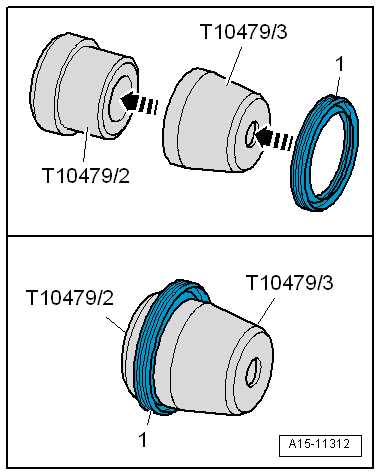

–  Fit seal -1- over fitting sleeve -T10479/3- onto guide sleeve -T10479/2-.
Installation position: closed end of seal faces fitting sleeve.
–  Separate fitting sleeve and guide sleeve.


Removing and installing exhaust camshaft oil seal, gearbox end, engine codes CHPA, CMBA, CPVA, CXSA, CZDA, CZCA, CPVB

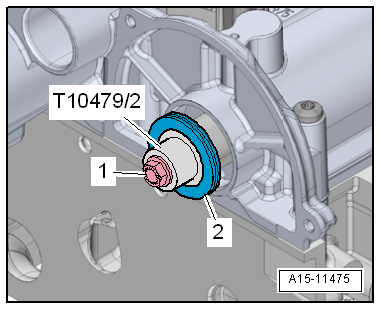

–  Fit guide sleeve -T10479/2- with oil seal -2- centrally to camshaft.
–  Secure guide sleeve onto camshaft using bolt -1- for coolant pump drive sprocket.
–  Push seal onto camshaft and unbolt guide sleeve.


Removing and installing exhaust camshaft oil seal, gearbox end, engine codes CHPA, CMBA, CPVA, CXSA, CZDA, CZCA, CPVB

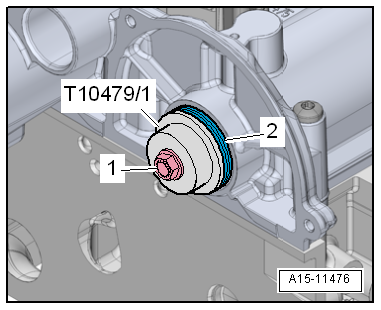

–  Draw in seal -2- as far as stop using thrust piece -T10479/1- and bolt -1- for toothed belt pulley for coolant pump.
–  Install toothed belt pulley for coolant pump → Chapter.
