Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

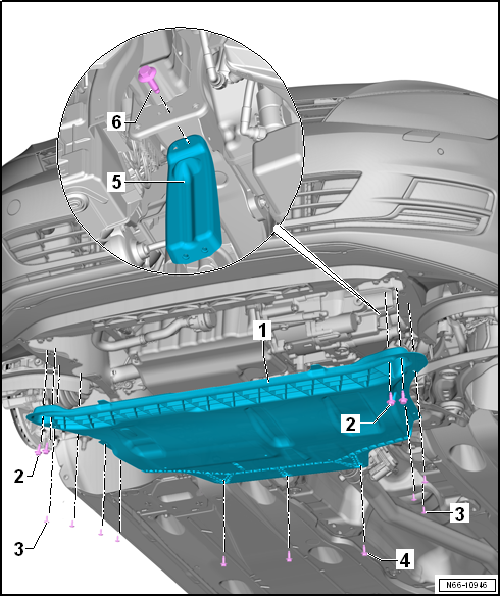

Assembly overview - skid plate

1 -	Underride guard

Removing

–	Remove bolts -2-, -3- and -4-.

–	Pull out noise insulation off lock carrier to the back.

2 -

Bolt

Qty. 2 each on left and right
20 Nm

3 -

Bolt

Qty. 3 on left
Qty. 4 on right
2.0 Nm

4 -

Bolt

Micro-encapsulated; renew after each removal
Qty. 3
20 Nm

5 -	Skid plate bracket

Left and right.

6 -

Bolt

Qty. 1 on each side
20 Nm
