Volkswagen Golf Service & Repair Manual: Removing and installing centre armrest

Special tools and workshop equipment required



Torque wrench -V.A.G 1410-
Torque wrench -V.A.G 1410-

Removing

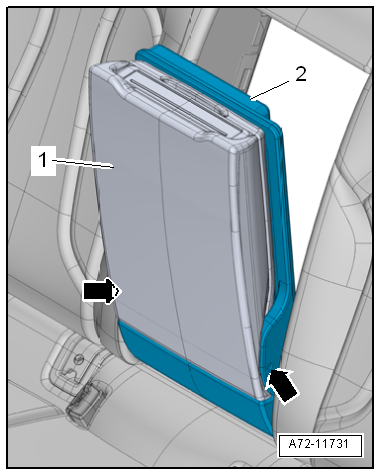

–  Open lid -2- for through-loading aperture with centre armrest by approx. 1/3.
–  Unscrew bolts -arrows-.
–  Remove centre armrest -1- from lid for through-loading aperture.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - centre armrest“


Removing and installing centre armrest

Removing and installing lid for through-loading aperture
Special tools and workshop equipment required         Torque wrench -V.A.G 1410 ...

Removing and installing head restraint
Removing –  Press release button -3- for height adjustment on head restraint guide -4- in -direction of arrow-. ...
