Special tools and workshop equipment required

Torque wrench -V.A.G 1410

Removing

–	Fold down centre armrest and open lid for through-loading aperture.

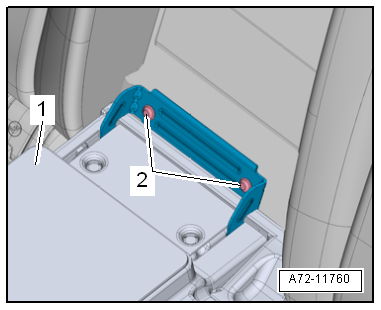

–	Remove bolts -2-.

–	Remove centre armrest with lid -1- for through-loading aperture.

–	Remove centre armrest → Chapter.

–	Remove lower intermediate padding → Chapter.

Installing

–	Fit lid -1- for through-loading aperture with centre armrest and tighten bolts only hand-tight.

–	Close lid for through-loading aperture and align it.

–	Tighten bolts -2- on rear seat backrest.

Further installation is performed in reverse order of removal

Specified torques

→ Chapter „Assembly overview - centre armrest“
