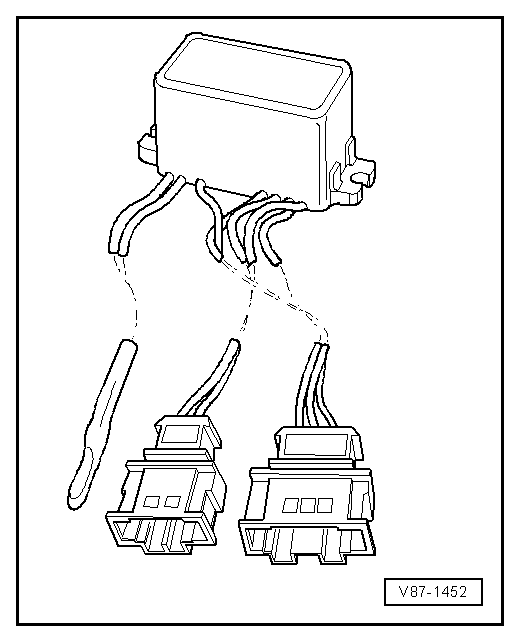

Volkswagen Golf Service & Repair Manual: Control and regulating unit for air conditioning system -J127

This control and regulating unit switches off the refrigerant flow through the second evaporator if the temperature at the cooling fins of the second evaporator falls to the freezing point of water (icing protection).


Control and regulating unit for air conditioning system -J127

Electrical components not installed in refrigerant circuit
...
