WARNING

Danger of freezing injuries.

If refrigerant circuit has not been evacuated, refrigerant will escape.

The refrigerant must be extracted before the valve -C- is removed. If the refrigerant circuit is not opened within 10 minutes after it has been evacuated, pressure may develop in coolant circuit due to re-evaporation. Extract refrigerant again.

The switches on the high-pressure and low-pressure sides have different threads.

Use only valves and O-rings that are resistant to refrigerant R134a and its associated refrigerant oils.

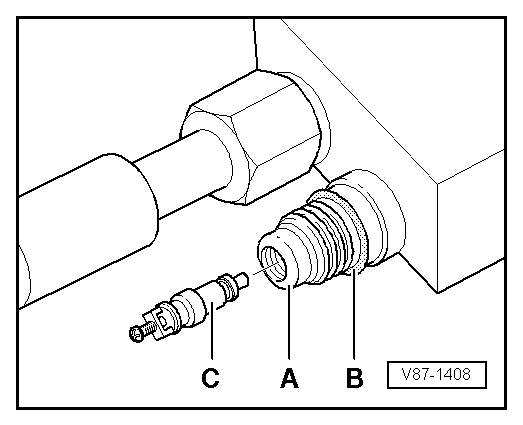

A -	Connection (soldered in)

B -

O-ring

C -	Valve (with O-ring)

Connections to valves for switches in the refrigerant circuit

Low-pressure switch for air conditioning system -F73

Function: In the event of pressure loss in the refrigerant circuit, switches the air conditioner compressor off (at approx. 2 bar). ...

Air conditioning system pressure switch -F129

This pressure switch has 3 functions: 1. Switches radiator fan to next higher speed when pressure increases in refrigerant circuit (approx. 16 bar). ...
