Volkswagen Golf Service & Repair Manual: Cleaning water drain hoses


Special tools and workshop equipment required

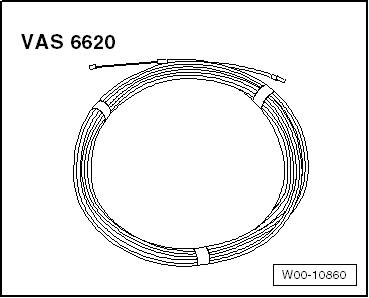

Cleaning and pull-in cable -VAS 6620-
Cleaning and pull-in cable -VAS 6620-

Cleaning water drain hoses

Front water drain hose
The front water drain hoses -2- are routed in the A-pillars and end in the plenum chamber.
–  Cleaning is carried out from bottom drain grommet -6- with the cleaning and pull-in cable -VAS 6620-.
Rear water drain hose
The rear water drain hoses -1- run through the C-pillars and end in the rear outer floor panels.
  Note
In models for “NAR market”, the left rear water drain hose ends in the left wheel housing.
–  Removing rear bumper cover of corresponding model → Chapter.
–  Cleaning for all models is carried out from bottom drain grommet -5- with the cleaning and pull-in cable -VAS 6620-.
Assembly overview - water drainage hoses
1 -  Rear water drain hose Left and right Cleaning → Chapter Removing and installing → Chapter 2 -  Front wate ...

Removing and installing water drain hoses
  Note In models for “NAR” market, the left rear water drain hose ends in the left wheel housing. Removing front water drain hose –  ...
