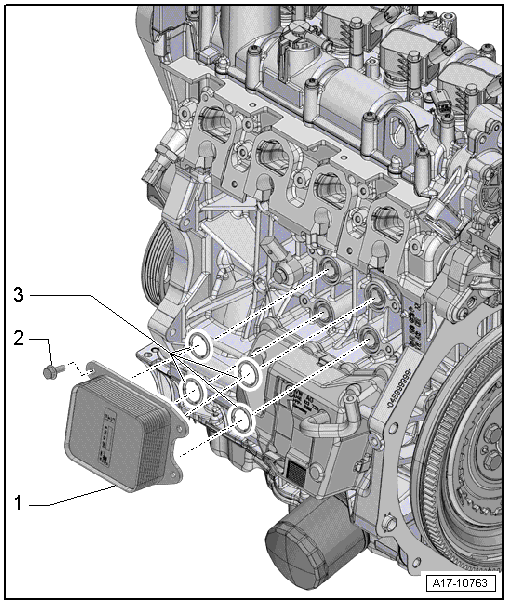

Assembly overview - engine oil cooler

1 -	Engine oil cooler

See note → Chapter

Removing and installing → Chapter

Change coolant after renewing.

2 -

Bolt

Renew

8 Nm + 90°

3 -

Oil seals

Renew

Engine oil cooler

...

Removing and installing engine oil cooler

Removing – Drain coolant → Chapter. – Remove intake manifold → Chapter ...
