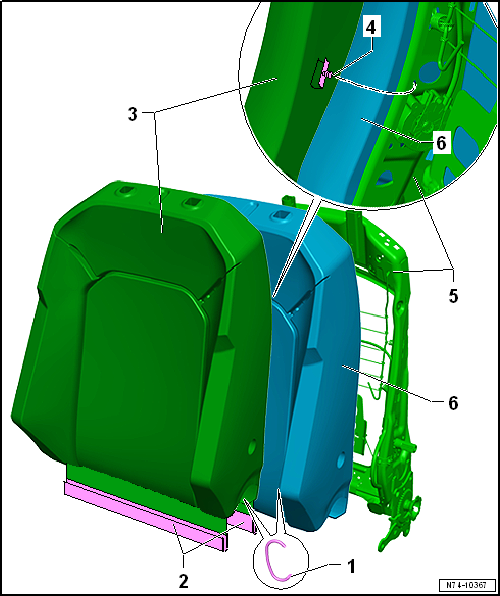

Assembly overview - cover and padding for backrest

1 -	Upholstery clip

For attaching backrest cover to backrest padding
Renew after removal
When installing, fit in same location using upholstery clip pliers -V.A.G 1634

2 -	Beading strip

Sewn to backrest cover
Seats with through-loading function have a zip fastener instead of beading strip
Ensure it is properly seated

3 -	Backrest cover

Different equipment versions
Allocation → Electronic Parts Catalogue
Removing and installing backrest cover with backrest padding → Chapter
Separating backrest cover from backrest padding → Chapter
After installation, check that there are no creases in seat.

4 -

Clip

For attaching backrest cover on rear backrest frame.
Left and right

5 -	Backrest frame

6 -	Backrest padding

Allocation → Electronic Parts Catalogue
Removing and installing backrest cover with backrest padding → Chapter
Separating backrest cover from backrest padding → Chapter
