Volkswagen Golf Service & Repair Manual: Undercoating, additional protected areas on hybrid vehicles

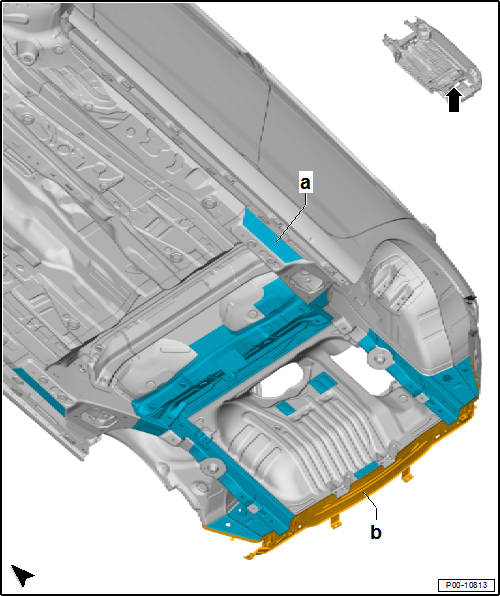

| Undercoating, rear body of hybrid vehicles |
| a - | Undercoating |
| Coat thickness: 0.3 mm |
| b - | Undercoating |
| Coat thickness: 0.5 mm |
Undercoating, additional protected areas on CNG-powered vehicles
Note
Undercoating (stone-chipping protection) applied during repair work
must be identical in appearance and thickness to the original
undercoating.
Wate ...
Cavity sealing
...
Other materials:
Dismantling and assembling drive shaft, constant velocity joint VL107
Special tools and workshop equipment required
Thrust plate -VW 401-
Thrust plate -VW 402-
Press tool -VW 408 A-
Support sleeve -VW 522-
Tensioner -40 - 204 A-
Special pliers -V.A.G 1682 ...
Assembly overview - locking mechanism
Note
The assembly overview shows the locking mechanism for left rear seat
back rest (1/3). The locking mechanism for the right rear seat backrest
(2/3) is similar.
1 -
Backrest frame
2 -
Trim for locking mechanism
...
Seat heating
Fig. 53 In the centre console: buttons
for the front seat heating
First read and observe the introductory information
and safety warnings The seat cushions and backrests can be heated electrically
when the ignition is switched on. Some seat versions have heated backrests.
Do not switch o ...
