Volkswagen Golf Service & Repair Manual: Structure of factory finish, clear coat

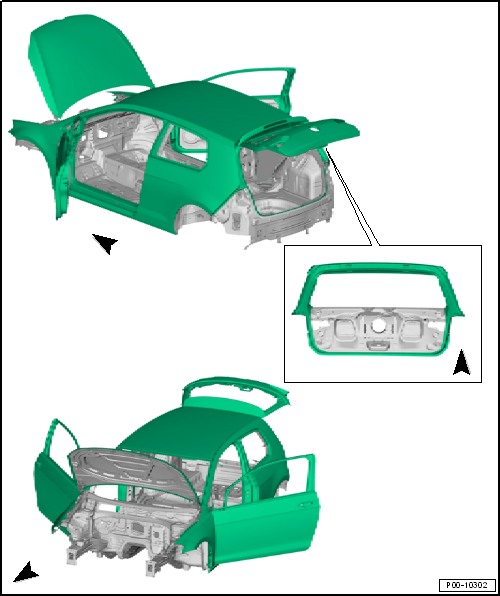

| Clear coat, 2-door |
| - | Clear coat |
| Only the coloured areas of the body receive a clear coat. |
| Clear coat, 4-door |
| - | Clear coat |
| Only the coloured areas of the body receive a clear coat. |
Structure of factory finish, base coat
Base coat, 2-door
-
Base coat
Only the coloured areas of the body receive a base coat.
...
Areas exposed to stone chipping
Body areas exposed to stone chipping
Note
The marked areas are exposed to stone chipping.
When sanding these areas, note thicknesses of the paint structure
...
