Volkswagen Golf Service & Repair Manual: Removing and installing storage compartment in roof headliner

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Interion equipment / Compartments/covers / Removing and installing storage compartment in roof headliner

Removing

–	Switch off ignition.

–	Unclip cover -1- from storage compartment in roof headliner -3-.

–	Remove front interior light -WX1--2- → Electrical system; Rep. gr.96.

–	If necessary, remove interior mirror covers → Chapter.

Removing and installing storage compartment in roof headliner

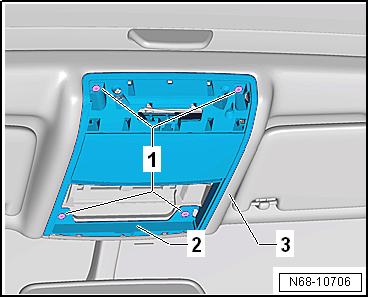

–	Remove bolts -1-.

–	Remove storage compartment in roof headliner -2- from reinforcing frame in moulded headliner -3-.

Installing

Note

Before installing, check all fasteners for damage and renew if necessary.

Installation is carried out in reverse order.

Specified torques

→ Chapter „Assembly overview - storage compartment in roof headliner“
