Volkswagen Golf Service & Repair Manual: Removing and installing roof end strip

Special tools and workshop equipment required

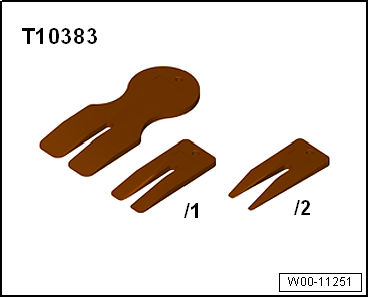

Wedges -T10383
Wedges -T10383

Removing

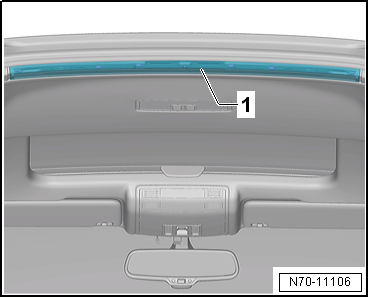

–  Release roof end strip -1- in area of retaining clips from body mountings using wedge -T10383-.
–  Remove roof end strip -1- downwards.
Installing
  Note
  •   Before installing, check all fasteners for damage and renew if necessary.
  •   Remove any retaining clips left in body mountings using removal tool -T40280- and fit them in roof end strip for installation.
  •   Following installation, ensure that roof end strip is positioned in rear lid seal beading.
Installation is carried out in reverse order.
